Vertical Ceramic Pump

SPECIFICATIONS:
-Discharge diameters :40-300mm
-Capacity: up to 1100m3/h
-Head: up to 45m
-Speed: 500-2200r/min
-Material: Silicon Carbide Ceramic

Description
Inquiry

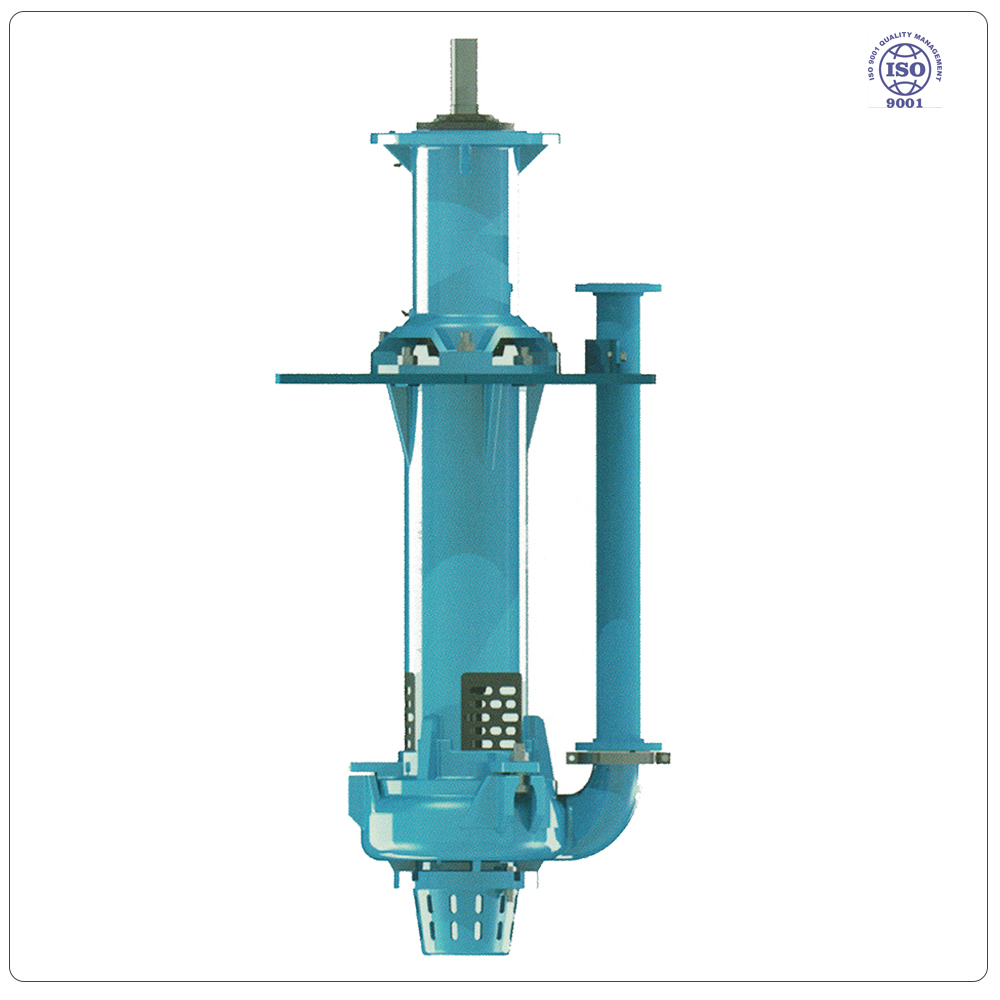

Kenda KVT Series Veritcal Ceramic Slurry Pump

The KVT series vertical ceramic pump is a vertical centrifugal slurry pump, submerged under the liquid. It is used to transport abrasive, coarse - grained, and high - concentration slurry. It does not require any shaft seal or shaft seal water, and can work normally under the condition of insufficient suction volume.

The flow - passing components of the KVT series submersible pump are made of silicon carbide ceramics, which have good wear - resistant and corrosion - resistant properties and a long service life. It is especially suitable for various sump pumps in mining, coal and desulfurization systems.

Kenda KVT Series Veritcal Ceramic Slurry Pump Features

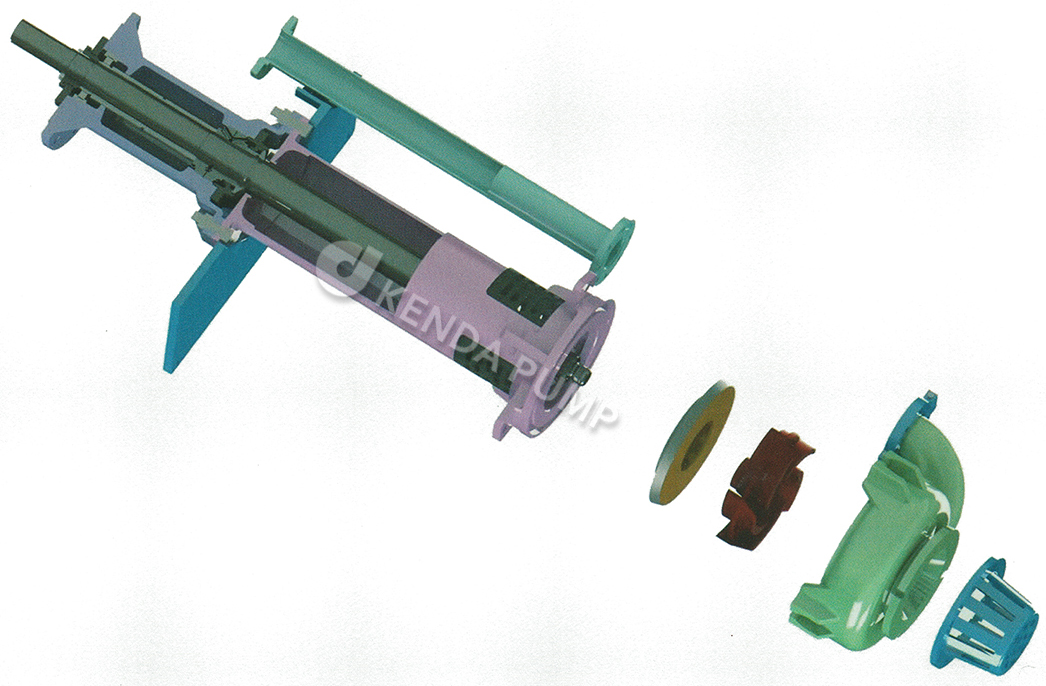

-Adopts a vertical cantilever structure.

-Features a silicon carbide ceramic impeller with a disassembly ring for easy removal.

-All flow-passing components are ceramic, offering excellent wear and corrosion resistance to extend the pump's overall service life.

-The cartridge-type bearing assembly uses a high-capacity design, lubricated with grease.

-Adjustable gap between the impeller and guard plate ensures efficient pump operation.

Kenda KVT Series Veritcal Ceramic Slurry Pump Performance Table

Model	Speed (r/min)	Flow (m3/h)	Head (m）	Shaft Power (kw)	Efficiency（%）	Motor (kW）	Impeller Dia. (mm)	Weight (kg)
KVT200-520	740	333.7	28.2	51.25	50	75	520	2500
		532	25.5	61.57	60	90
		734	22.6	70.59	64
KVT200-520	700	313.2	25.2	42.99	50	75	520	2500
		511	22.9	53.11	60	90
		705	20	60.00	64
KVT200-520	650	288	21.7	34.04	50		520	2500
		479	19.5	42.40	60	55
		666	17	48.18	64	75
KVT200-520	550	241.2	15.5	20.36	50	37	520	2500
		414	13.8	25.93	60	45
		586.8	12	29.96	64
KVT200-520	500	216	12.8	15.06	50	22	520	2500
		385.2	11.4	19.93	60	30
		550.8	9.7	22.73	64	37
KVT150-450	1000	140.4	12.9	10.96	45	75	450	1850
		244.8	11.4	14.34	53	90
		345.6	9.6	17.05	53
KVT150-450	980	230.4	33.5	47.13	45	75	450	1850
		396	30.2	61.45	53	90
		561.6	25.4	73.30	53
KVT150-450	940	223.2	31.4	6.27	45	75	450	1850
		381.6	28	8.29	53	90
		540	23.5	9.91	53
KVT150-450	900	212.4	28.9	37.15	45	55	450	1850
		367.2	25.7	48.49	53	75
		518.4	21.7	57.80	53	90
KVT150-450	850	201.6	25.5	31.11	45	45	450	1850
		345.6	22.9	40.67	53	55
		486	19.3	48.20	53	75
KVT150-450	800	187.2	22.9	25.94	45	37	450	1850
		324	20.4	33.96	53	55
		457.2	17.1	40.17	53
KVT150-450	740	169.2	19	19.46	45	30	450	1850
		295.2	17	25.79	531	37
		417.6	14.5	31.11	53	45
KVT150-450	700	165.8	17.5	17.54	45	30	450	1850
		280.8	15.7	22.65	53	37
		396	13.2	26.86	53	45
KVT150-450	650.	151.2	15.2	13.91	45	22	450	1850
		262.8	13.5	18.23	53	30
		374.4	11.4	21.93	53	37
KVT150-450	600	140.4	12.9	10.96	451	15	450	1850
		244.8	11.4	14.34	53	22
		345.6	9.6	17.05	53	30
KVT150-450	550	129.6	10.8	8.47	45	15	450	1850
		223.2	9.7	11.12	53	18.5
		316.8	8	13.02	53	22
KVT150-450	500	115.2	9	6.27	45	11	450	1850
		201.6	8	8.29	53	15
		288	6.7	9.91	53
KVT100-370	1200	100.8	36	24.71	40	37	370	920
		180	33.8	31.86	52	45
		259.2	30	37.82	56
KVT100-370	1150	95.4	33	21.43	40	30	370	920
		172.8	31	28.05	52	45
		25.2	27.5	33.70	56
KVT100-370	1100	91.8	30.3	18.94	40	30	370	920
		165.6	28.2	24.46	52	37
		239.4	25.2	29.34	56	45
KVT100-370	1050	86.4	27.7	16.29	40	30	370	920
		158.4	25.7	21.32	52	37
		230.4	22.8	25.55	56	451
KVT100-370	1000	82.8	24	13.53	40	22	370	920
		147.6	22.5	17.39	52	30
		214.2	20	20.83	561	37
KVT100-370	970	82.8	24	13.53	40	30	370	920
		147.6	22.5	17.39	52	37
		214.2	20	20.83	56	45
KVT100-370	900	75.6	20.3	10.54	40	15	370	920
		136.8	19	13.61	52	22
		198	16.9	16.27	56	30
KVT100-370	850	68.4	18	8.38	40	15	370	920
		129.6	17	11.54	52	18.5
		187.2	15	13.66	56	22
KVT100-370	800	64.8	16	7.06	40	11	370	920
		122.4	15	9.62	52	15
		176.4	13.2	11.32	56	18.5
KVT100-370	730	61.2	13.4	5.58	40	11	370	920
		111.6	12.7	7.42	52	15
		162	11.2	8.82	56	18.5
KVT100-370	700	57.6	12.2	4.78	40	5.5	370	920
		104.4	11.5	6.29	52	7.5
		151.2	10.2	7.50	56	1
KVT100-370	600	50.4	9	3.09	40	3	370	920
		90	8.5	4.01	52	4
		129.6	7.6	4.79	56	5.5
KVT100-370	500	41.5	6.2	1.75	40	3	370	920
		75.6	5.9	2.34	52	4
		111.6	5.1	2.77	56	5.5
KVT65-280	1500	40.32	30.8	8.45	40	18.5	280	500
		72	27.4	10.75	50	22
		102.6	23.5	13.13	50
KVT65-280	1470	39.6	30.8	8.45	40	18.5	280	500
		70.2	27.4	10.75	50	22
		102.6	23.5	13.13	50
KVT65-280	1400	37.8	26.7	6.87	40	11	280	500
		66.6	24	8.71	50	15
		95.4	20.5	10.65	50	18.5
KVT65-280	1300	35.28	23.1	5.55	40	7.5	280	500
		61.2	20.8	6.93	50	11
		88.2	17.8	8.55	501	15
KVT65-280	1200	32.4	19.6	4.32	40	7.5	280	500
		57.6	17.7	5.55	50	11
		81.72	15.2	6.77	50	15
KVT65-280	1100	30.24	16.6	3.42	40	7.5	280	500
		54	14.8	4.35	50	11
		75.6	12.8	5.27	50
KVT65-280	960	26.28	12.8	2.29	40	3	280	500
		46.8	11.4	2.91	50	4
		65.88	9.8	3.52	50	5.5
KVT65-280	900	24.48	11.1	1.85	40	4	280	500
		43.2	9.9	2.33	50	5.5
		61.2	8.5	2.83	50
KVT65-280	800	21.6	8.9	1.31	40	3	280	500
		39.6	7.9	1.70	50	4
		55.08	6.8	2.04	50
KVT65-280	710	20.16	7	0.96	40	2.2	280	500
		34.92	6.4	1.22	50	3
		49.68	5.4	1.46	501
KVT65-280	700	19.8	6.7	0.87	40	3	280	500
		34.2	6	1.12	50	3
		48.61	5	1.32	50	3
KVT40-188	2200	16.2	27.4	4.03	30	7.5	188	300
		28.8	24.6	5.21	37	5.5
		39.6	21.4	6.41	36
KVT40-188	2100	15.48	24.9	3.50	301	11	188	300
		26.64	22.5	4.41	37	5.51
		37.8	19.5	5.581	36	7.5
KVT40-188	2000	14.76	22.5	3.01	30	4	188	300
		25.2	20.6	3.82	37	7.5
		361	17.6	4.79	36	5.5
KVT40-188	1900	14.04	20.5	2.61	30	4	188	300
		24.12	18.7	3.32	37	5.5
		34.2	16	4.14	36	7.5
KVT40-188	1800	13.32	18.2	2.20	30	3	188	300
		22.68	16.8	2.80	37	4
		32.04	14.5	3.51	36	5.5
KVT40-188	1700	12.24	16.4	1.82	30	3	188	300
		21.24	15	2.34	37	4
		30.24	12.9	2.95	36	5.5
KVT40-188	1600	11.52	14.4	1.51	30	2.2	188	300
		19.8	13	1.89	37	3
		28.08	11.2	2.38	361	4
KVT40-188	1500	10.8	12.7	1.25	30	2.2	188	300
		18.72	11.3	1.56	37	3
		26.64	10	2.02	36	4
KVT40-188	1420	10.44	11.5	1.09	30	1.5	188	300
		18	10.5	1.39	37	2.2
		25.2	9	1.72	36	3
KVT40-188	1400	10.08	10.9	1.00	30	1.5	188	300
		18	10	1.32	37	2.2
		24.84	8.7	1.63	36	3
KVT40-188	1200	9	8	0.65	30	1.1	188	300
		15.12	7.4	0.85	36	1.5
		21.6	6.4	1.05	36
KVT40-188	1000	7.2	5.5	0.36	30	1.1	188	300
		12.6	5	0.48	36	1.1
		18	4.3	0.59	36	1.1

Application

• Mining	• Mineral processing	• Cyclone feed pump	• Chemical Industry
• Ash handing	• Paper and Pulp	• Waste sludge	• Coarse sand
• Lime mud	• Phosphoric acid	• Ore dressing	• Tailings conveyor
•Environmental Protection	• Coal-fired Power	• Iron and Steel	• Smelting
