KS 250 Centrifugal Sand Pump

SPECIFICATIONS:
Sizes from 3x2x13 to 10x8x14
Flow rates up to 2,600 GPM
Head pressure up to 550 feet
Best utilized for applications requiring up to 200 HP

Description
Inquiry

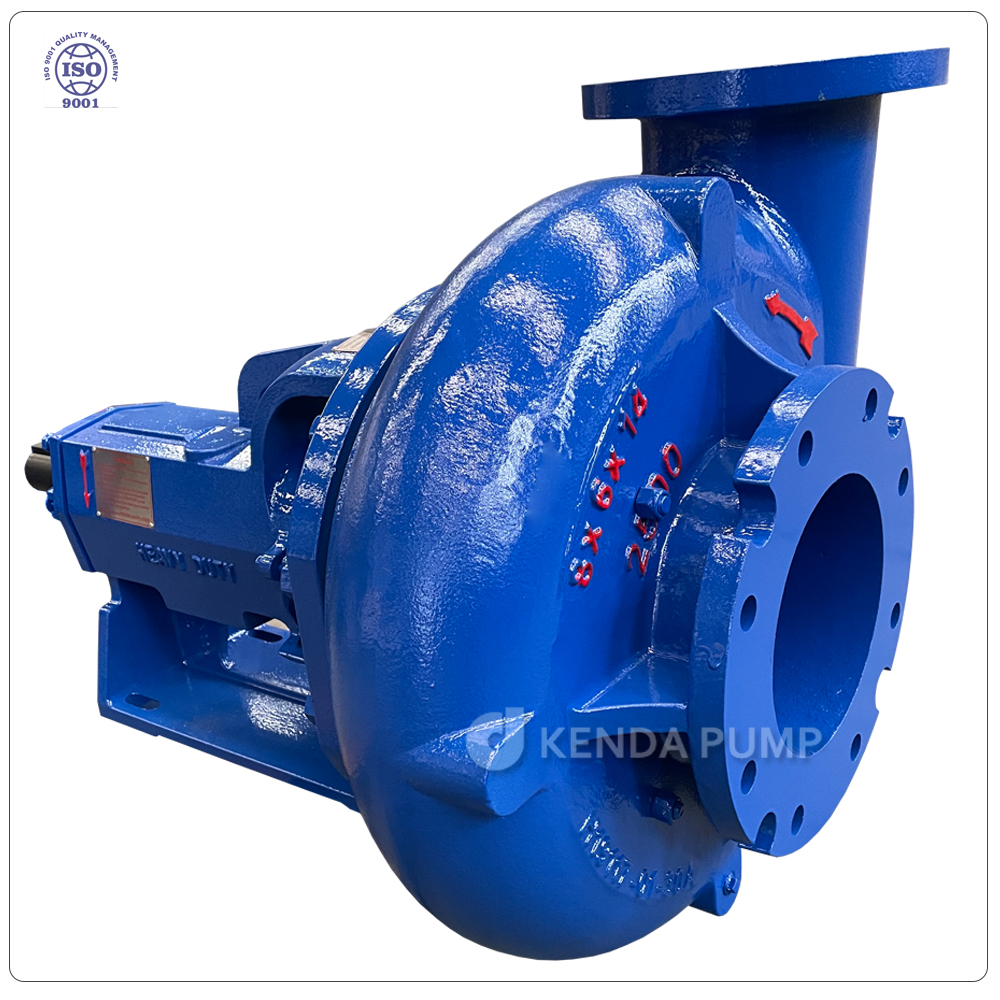

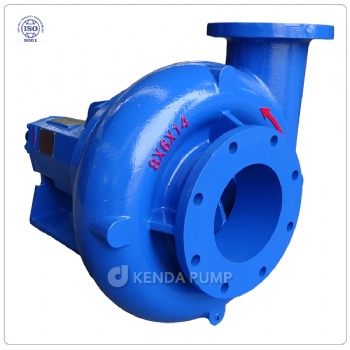

KS250 Supreme Centrifugal Sand Pump

The KS250 Supreme has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The KS250 Supreme is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

Design Features:

• Versatile stuffing box

• Thick, strong, concentric casing with replaceable casing wear pad

• Casing gasket receded for protection.

• Replaceable stuffing box cover with dual stuffing box bolts

• Long-life, no-adjustment mechanical seal available for near zero leakage

• Replaceable shaft sleeve

• Solid Frame base

• Labyrinth seals for maximum bearing protection

• Duplex angular contact bearings

• Full pipe diameter entrance for minimum turbulence and maximum efficiency

• Wide semi-open impeller creates lower axial thrust for improved bearing life

• All sizes feature the same power end

Typical Configurations:

3x2x13       6x5x14
4x3x13       8x6x11
5x4x14       8x6x14

6x5x11 10x8x14

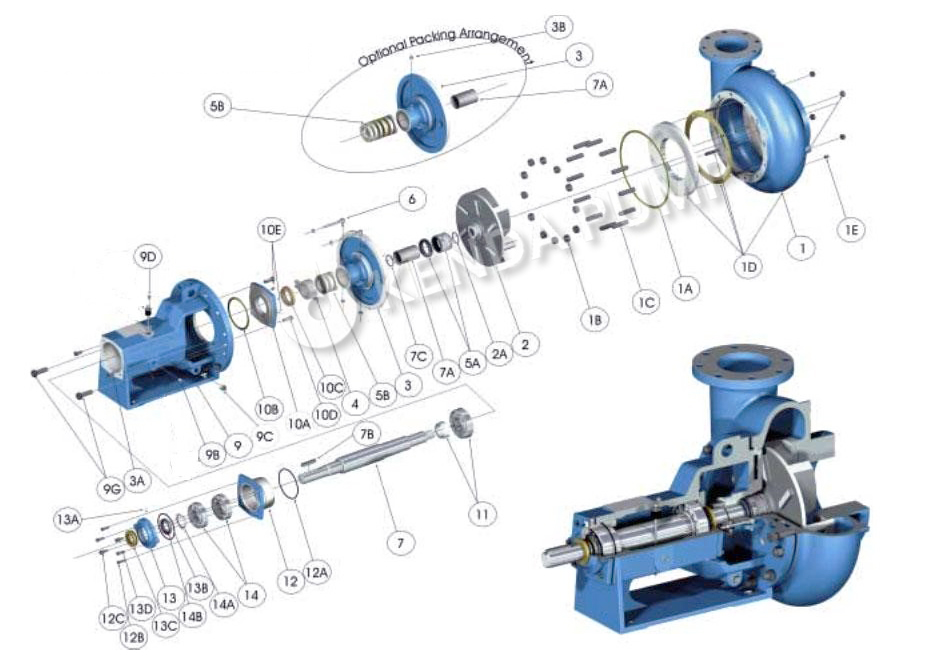

Kenda KS250 Supreme Centrifugal Sand Pump Parts List

Item	Qty	OEM Part No.	Description	Material	Weight kg
1*	1	See below	Casing
1A	1	10399-46-1	Gasket,casing	Vellumoid	0.01
1B	12	3932-61	Nut,casing	Stl	0.05
1C	12	H2507-3	Stud,casing	Stl	0.16
1D*	1	See below	Wear pad.includes Stds,rucs＆gskt
1E	1	8505-2H	Plug,Casing Drain	Stl	0.03
2*	1	See below	Impeller
2A	1	H19110-72	Seal,impeller	Viton	0.002
3*#	1	H22223-01-30	Stuffing box,mech.seal	Hard Iron	20
3*&	1	H20614-01-30	Stuffing box,packed	Hard Iron	20
3A	2	H3861-117	Bolt,stuffing box	Stl	0.05
3B&	1	19368-1H	Grease fitting	Stl	0.01
4	2	H20622AH	Gland assy,packing	Stl 304	1
5A#	1	H22451-1A	Seal,mechanical	Tung/Tung	1
5B~	1	8264-24-0B	Packing, Shaft		0.7
6	2	20629	Bolt assy,gland	Stl 304	0.15
7	1	H20612-02-33	Shaft	42CrMo	17
7A#	1	H20613-21A	Sleeve,Shaft		1
7A&	1	H20613-21G-7A	Sleeve,Shaft(Ceramic)		1
7B	1	H4372-5-21	Key,Shaft	Stl	0.11
7C	1	23444-01-72	Seal,Shaft Sleeve	Viton	0.005
8	1	22210-1A	Deflector,Assembly	Composite	0.4
9	1	H17444	Frame,Grease Lubricated	Cast iron	80
9C	1		Plug,Frame Drain	Stl	0.033
9D	1	H8267-1	Breather	Stl
9G	2	H2538-1	Bolt,Casing Jack	Stl
10A	1	H17950	Cover,Inboard Bearing	Iron	2.6
10B	1	H20625	Gasket, Inboard Bearing Cover	Vegetable fiber	0.01
10C	1	H2564-4	Labyrinth Seal,IB Brg Cvr	Buna-n	0.06
10D	2	H3861-1	Bolt,I.B.Brg.Cover	Stl	0.03
10E	1		Grease Fitting	Stl
11	1	N/A	Bearing,Inboard	Vendor	2.1
12	1	H20624-01-01	Houding,O.B.Bearing	Iron	6
12A	1	H7496-253	Seal,O.B.Brg Housing	Buna-n	0.01
12B	4	H3861-138	Bolts,O.B.Brg.Housing	Stl	0.05
12C	2	H3932-62	Nut,O.B.Brg.Housing	Stl	0.016
13	1	20617A	Cover,O.B.Bearing	Iron	1.8
13A	1		Grease Zerk,O.B.Brg.Cvr.	Stl	0.01
13B	1	H7496-26	O-ring,O.B.Bearing Cover	Buna-n	0.001
13C	1	H2564-3	Labyrinth Seal,O.B. Brg Cvr.	Buna-n	0.04
13D	2	H3861-139	Bolt,O.B.Brg.Cover	Stl	0.025
14	2	H20616-1S	Bearing,O.B.(2 Req’d)	Vendor	1.5
14A	1	H6124-4	Lockwasher,O.B.Bearing	Stl	0.01
14B	1	H6123-4	Locknut,O.B.Bearing	Stl	0.22
Casings-includes studs,nuts & gasket
1*	1	H19203-01-30A	Casing,3×2×13	Hard Iron	55
1*	1	H19205-01-30A	Casing,4×3×13,w/ wear pad	Hard Iron	55
1*	1	H19222-01-30A	Casing,5×4×14 w/ wear pad	Hard Iron	85
1*	1	H19122-01-30A	Casing,6×5×11 w/ wear pad	Hard Iron	88
1*	1	H19123-01-30A	Casing, 6×5×14 w/ wear pad	Hard Iron	90
1*	1	H19763-01-30A	Casing, 8×6×11 w/ wear pad	Hard Iron	95
1*	1	H19117-01-30A	Casing,8×6×14 w/ wear pad	Hard Iron	125
1*	1	H20937-01-30A	Casing,10×8×14 w/ wear pad	Hard Iron	150
Impellers and Casing Wear Pads
2*	1	H19204-XX-30	Impeller,3×2×13 Open	Hard Iron	9
2*	1	H19206-XX-30	Impeller,4×3×13 Open	Hard Iron	12.5
2*	1	H2523-XX-30	Impeller,5×4×14 Semi Open	Hard Iron	18
2*	1	H2523-XX-30	Impeller,6×5×11 Semi Open	Hard Iron	17
2*	1	H2523-XX-30	Impeller, 6×5×14 Semi Open	Hard Iron	22
2*	1	H2524-XX-30	Impeller, 8×6×11 Semi Open	Hard Iron	23
2*	1	H2524-XX-30	Impeller,8×6×14 Semi Open	Hard Iron	25
2*	1	H2526-XX-30	Impeller,10×8×14 Semi Open	Hard Iron	26
1E	1	H2501-01-30A	Wear Pad,4×3×13 Casing	Hard Iron	9
1E	1	H2502-01-30A	Wear Pad,5×4×14 Casing	Hard Iron	9.5
1E	1	H2503-01-30A	Wear Pad,6×5×11 Casing	Hard Iron	8.5
1E	1	H2504-01-30A	Wear Pad, 6×5×14 Casing	Hard Iron	10
1E	1	H2505-01-30A	Wear Pad, 8×6×11 Casing	Hard Iron	9.5
1E	1	H2506-01-30A	Wear Pad,8×6×14 Casing	Hard Iron	11
1E	1	H2507-01-30A	Wear Pad,10×8×14 Casing	Hard Iron	12

Note：

1. XX－Impeller code－Firsr X equals diameter of impeller in inches minus 4.Therefore 10″=6,9″=5 etc…14″ use lettet A;

2. Second X equals frational data in1/8′s.Therefore 1/8″=1, 1/4″=2 ,etc…Thus a 10.5″impeller is coded as 64, 12″impeller is coded as 80, 13.25″impeller is coded as 92 etc…

3. YYY－the metric diameter of impeller，therefore 12″ is coede as 305mm，11″ is coded as 280mm

Application:

• Barite, ferric oxide, and mineral oil	• Base drilling muds	• Glass fibers	• Sugar processing
• coal conveyers	• Cement	• Mine de-watering	• Lime slurries
• Kaolin clay	• Crystalline forms	• Ash handling	• Mineral Processing

Disclaimer:

Kenda Pump is a Chinese company. It neither represents Mission Magnum® of NOV Group nor has any affiliation with the brand. All names, numbers, symbols, and descriptions contained herein are for reference only and do not imply that any pumps or parts listed are products of Mission Magnum Pumps.

Kenda sand pumps and spares are only interchangeable with those of Mission Magnum.

This document is the exclusive property of Kenda Pump. It may not be reproduced or disclosed to any third party without written authorization.
